Walaupun ujian semester teleh selesai, bukan berarti pelajaran elektronika kelas X selesai, masih ada satu materi yang menurut saya sangat sulit dipahami, yaitu OP-AMP (penguat operasional).

OP-AMP adalah suatu jenis penguat elektronika dengan sambatan (coupling) arus searah yang memiliki bati (faktor penguatan atau gain) sangat besar dengan dua masukan dan satu keluaran. Penguat operasional pada umumnya tersedia dalam bentuk sirkuit terpadu dan yang paling banyak digunakan adalah seri 741.

PENGUAT PEMBALIK (INVERTING)
Sebuah penguat pembalik menggunakan umpan balik negatif untuk membalik dan menguatkan sebuah tegangan. Resistor Rf melewatkan sebagian sinyal keluaran kembali ke masukan. Karena keluaran taksefase sebesar 180°, maka nilai keluaran tersebut secara efektif mengurangi besar masukan. Ini mengurangi bati keseluruhan dari penguat dan disebut dengan umpan balik negatif.


 PENGUAT NON PEMBALIK (NON INVERTING)

Dengan demikian, penguat non-pembalik memiliki bati minimum bernilai 1. Karena tegangan sinyal masukan terhubung langsung dengan masukan pada penguat operasional maka impedansi masukan bernilai



Nach.....!!! untuk teman-teman yang senang dengan dunia elektronika mungkin ini dapat bermanfaat, semoga dapat menjadi tambahan pengetahuan bagi teman-teman semua.



 SERIAL-IN SERIAL-OUT SHIFT REGISTER (SISO)
Serial-in, serial-out shift registers delay data by one clock time for each stage. They will store a bit of data for each register. A serial-in, serial-out shift register may be one to 64 bits in length, longer if registers or packages are cascaded.

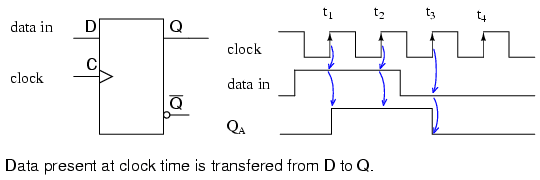

Below is a single stage shift register receiving data which is not synchronized to the register clock. The "data in" at the D pin of the type D FF (Flip-Flop) does not change levels when the clock changes for low to high. We may want to synchronize the data to a system wide clock in a circuit board to improve the reliability of a digital logic circuit.

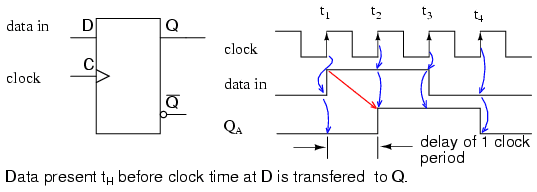

he obvious point (as compared to the figure below) illustrated above is that whatever "data in" is present at the D pin of a type D FF is transfered from D to output Q at clock time. Since our example shift register uses positive edge sensitive storage elements, the output Q follows the D input when the clock transitions from low to high as shown by the up arrows on the diagram above. There is no doubt what logic level is present at clock time because the data is stable well before and after the clock edge. This is seldom the case in multi-stage shift registers. But, this was an easy example to start with. We are only concerned with the positive, low to high, clock edge. The falling edge can be ignored. It is very easy to see Q follow D at clock time above. Compare this to the diagram below where the "data in" appears to change with the positive clock edge.
Since "data in" appears to changes at clock time t1 above, what does the type D FF see at clock time? The short over simplified answer is that it sees the data that was present at D prior to the clock. That is what is transfered to Q at clock time t1. The correct waveform is QC. At t1 Q goes to a zero if it is not already zero. The D register does not see a one until time t2, at which time Q goes high.

Since data, above, present at D is clocked to Q at clock time, and Q cannot change until the next clock time, the D FF delays data by one clock period, provided that the data is already synchronized to the clock. The QA waveform is the same as "data in" with a one clock period delay.
A more detailed look at what the input of the type D Flip-Flop sees at clock time follows. Refer to the figure below. Since "data in" appears to changes at clock time (above), we need further information to determine what the D FF sees. If the "data in" is from another shift register stage, another same type D FF, we can draw some conclusions based on data sheetinformation. Manufacturers of digital logic make available information about their parts in data sheets, formerly only available in a collection called a data book. Data books are still available; though, the manufacturer's web site is the modern source.




tS is the setup time, the time data must be present before clock time. In this case data must be present at D 100ns prior to the clock. Furthermore, the data must be held for hold time tH=60ns after clock time. These two conditions must be met to reliably clock data from D to Q of the Flip-Flop.
There is no problem meeting the setup time of 60ns as the data at D has been there for the whole previous clock period if it comes from another shift register stage. For example, at a clock frequency of 1 Mhz, the clock period is 1000 µs, plenty of time. Data will actually be present for 1000µs prior to the clock, which is much greater than the minimum required tS of 60ns.
The hold time tH=60ns is met because D connected to Q of another stage cannot change any faster than the propagation delay of the previous stage tP=200ns. Hold time is met as long as the propagation delay of the previous D FF is greater than the hold time. Data at D driven by another stage Q will not change any faster than 200ns for the CD4006b.
To summarize, output Q follows input D at nearly clock time if Flip-Flops are cascaded into a multi-stage shift register.


Three type D Flip-Flops are cascaded Q to D and the clocks paralleled to form a three stage shift register above.
Three type D Flip-Flops are cascaded Q to D and the clocks paralleled to form a three stage shift register above.








Type JK FFs cascaded Q to J, Q' to K with clocks in parallel to yield an alternate form of the shift register above.
A serial-in/serial-out shift register has a clock input, a data input, and a data output from the last stage. In general, the other stage outputs are not available Otherwise, it would be a serial-in, parallel-out shift register..
The waveforms below are applicable to either one of the preceding two versions of the serial-in, serial-out shift register. The three pairs of arrows show that a three stage shift register temporarily stores 3-bits of data and delays it by three clock periods from input to output.




At clock time t1 a "data in" of 0 is clocked from D to Q of all three stages. In particular, D of stage A sees a logic 0, which is clocked to QA where it remains until time t2.
At clock time t2 a "data in" of 1 is clocked from D to QA. At stages B and C, a 0, fed from preceding stages is clocked to QBand QC.
At clock time t3 a "data in" of 0 is clocked from D to QA. QA goes low and stays low for the remaining clocks due to "data in" being 0. QB goes high at t3 due to a 1 from the previous stage. QC is still low after t3 due to a low from the previous stage.
QC finally goes high at clock t4 due to the high fed to D from the previous stage QB. All earlier stages have 0s shifted into them. And, after the next clock pulse at t5, all logic 1s will have been shifted out, replaced by 0s
